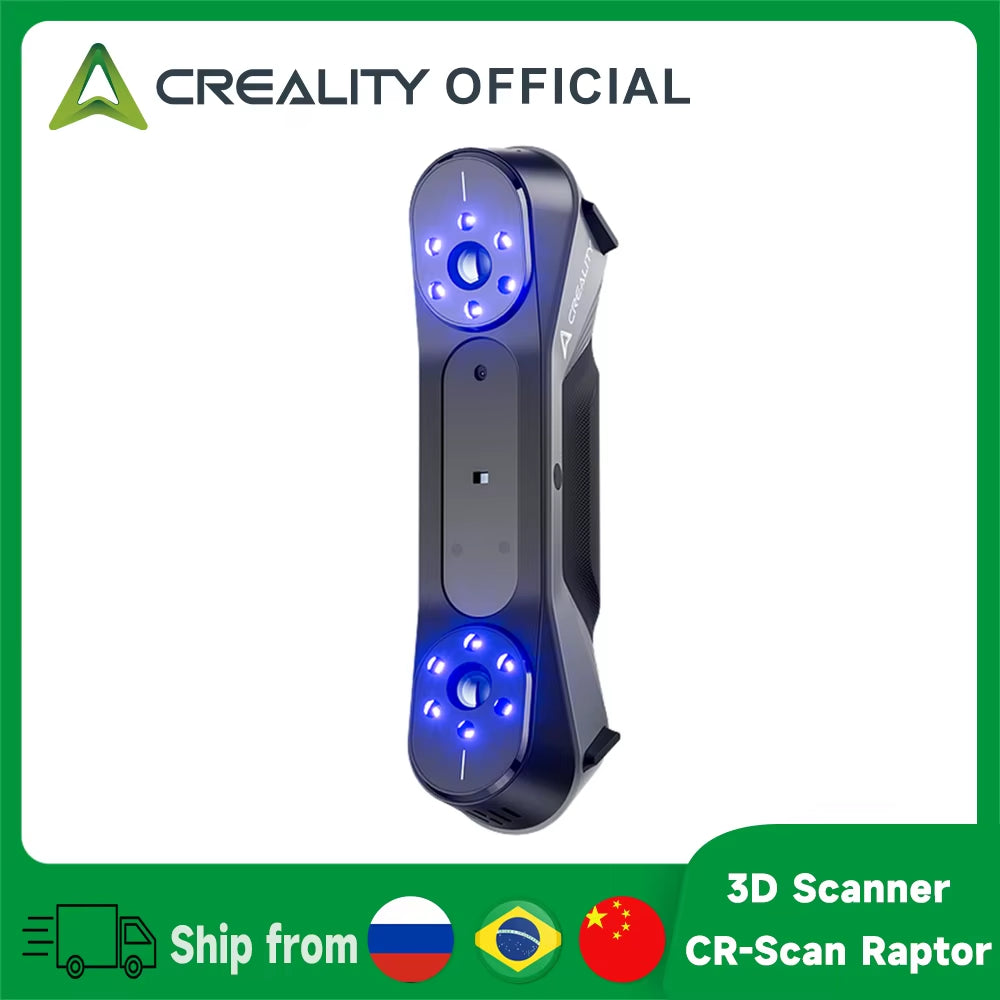

3D Scanner Cr-Scan Raptor Multiple-Line Blue NIR 0.02Mm Accuracy 60FPS Anti-Shake Tracking Scanning 24Bit Color Scanner

3D Scanner Cr-Scan Raptor Multiple-Line Blue NIR 0.02Mm Accuracy 60FPS Anti-Shake Tracking Scanning 24Bit Color Scanner features 7 blue parallel laser lines with metrology grade accuracy up to 0.02mm and scanning speed up to 60fps. This lightweight and portable scanner weighs only 372g and measures 215mm×50mm×74mm, offering one-hand control for convenient operation. Scan objects between 5-2000mm with anti-shaking technology for smooth scanning, and capture black or metal objects without sprays. The scanner includes 24-bit full-color scanning capability and supports both Blue Light (Blue 7-line laser) and NIR (infrared binocular structured light) modes for versatile scanning applications.

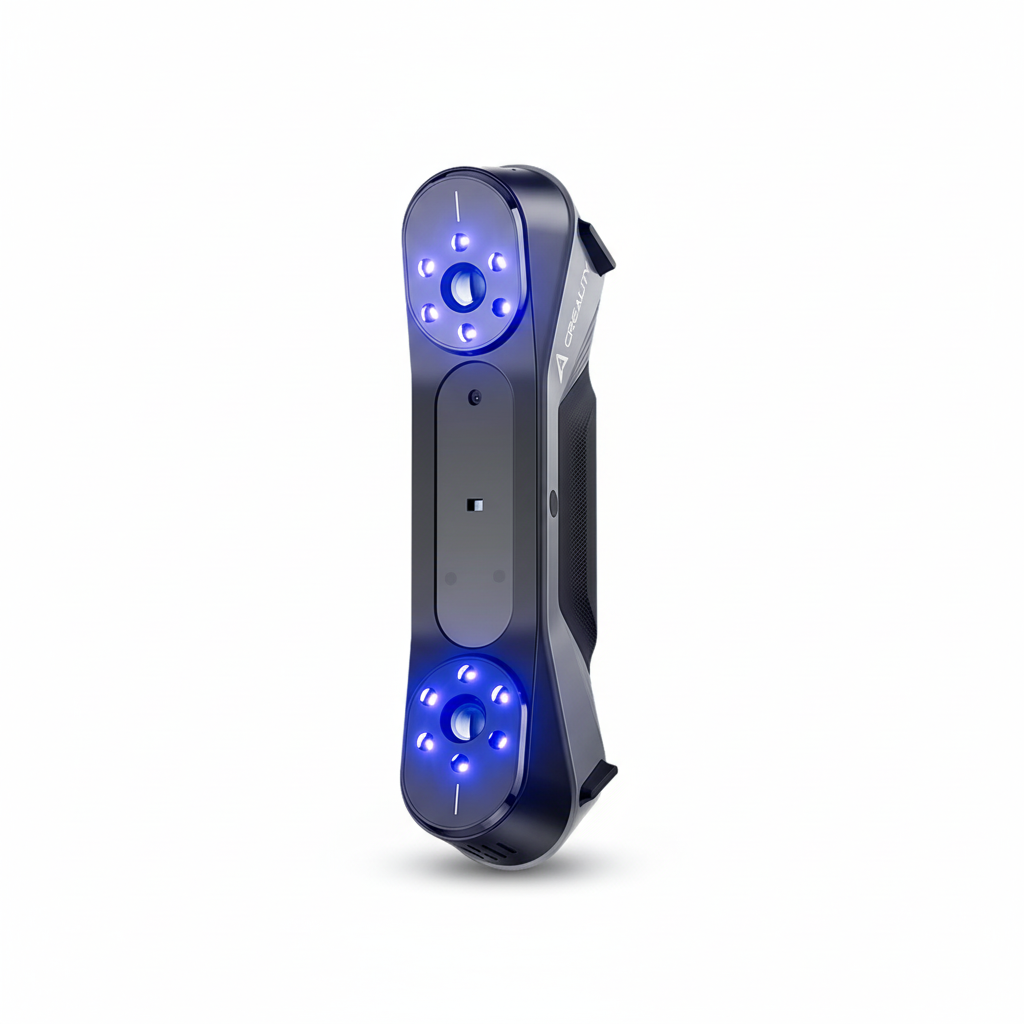

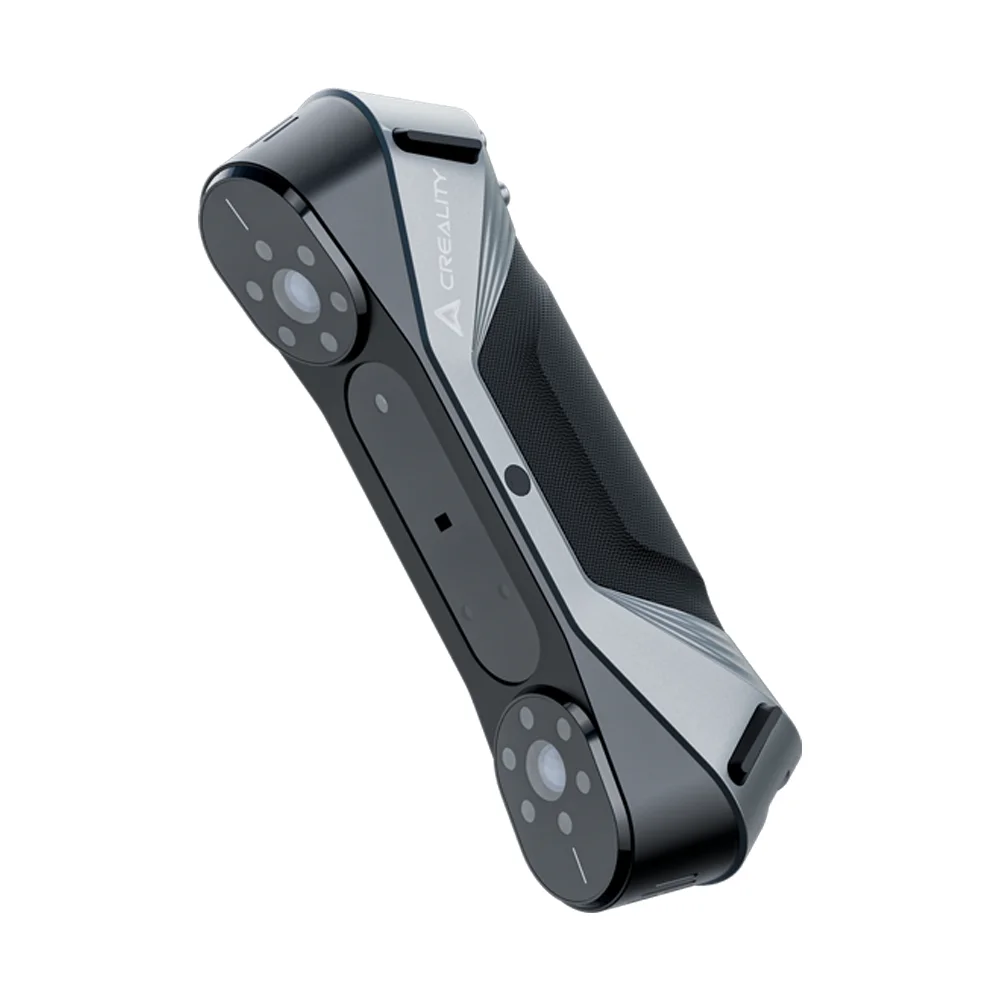

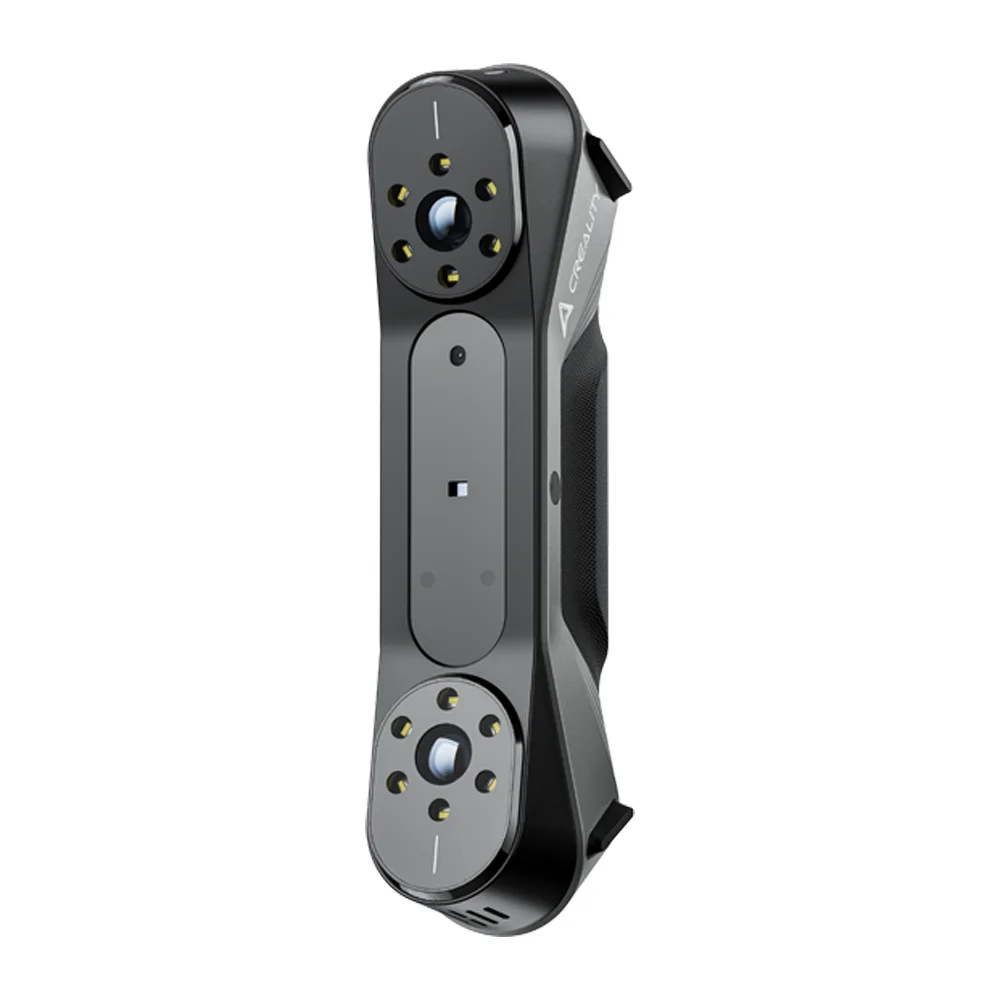

CR-Scan Raptor 3D Scanner

Blue Light (Blue 7-line Laser) Mode Specifications

Accuracy: Up to 0.02mm @ 100mm
3D Resolution: 0.02-2mm

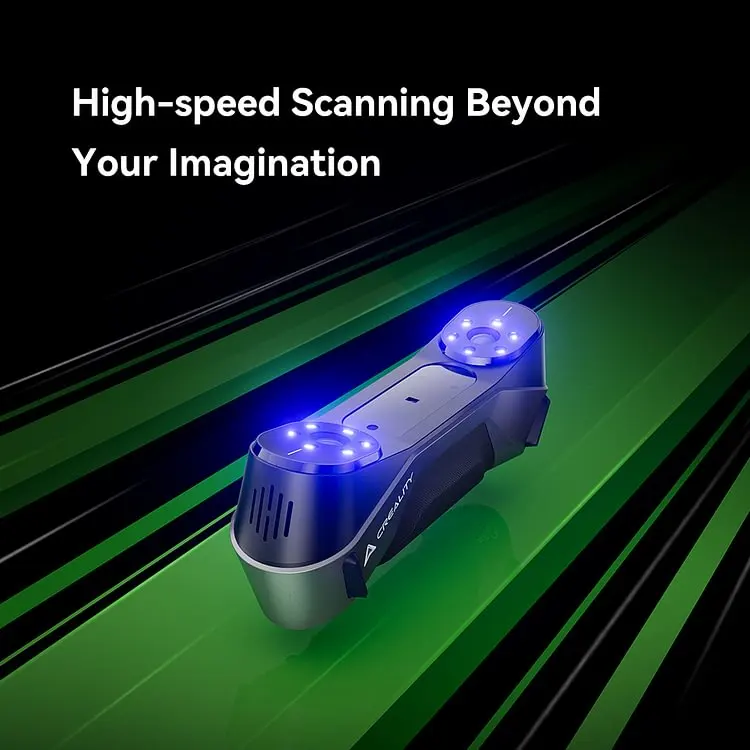

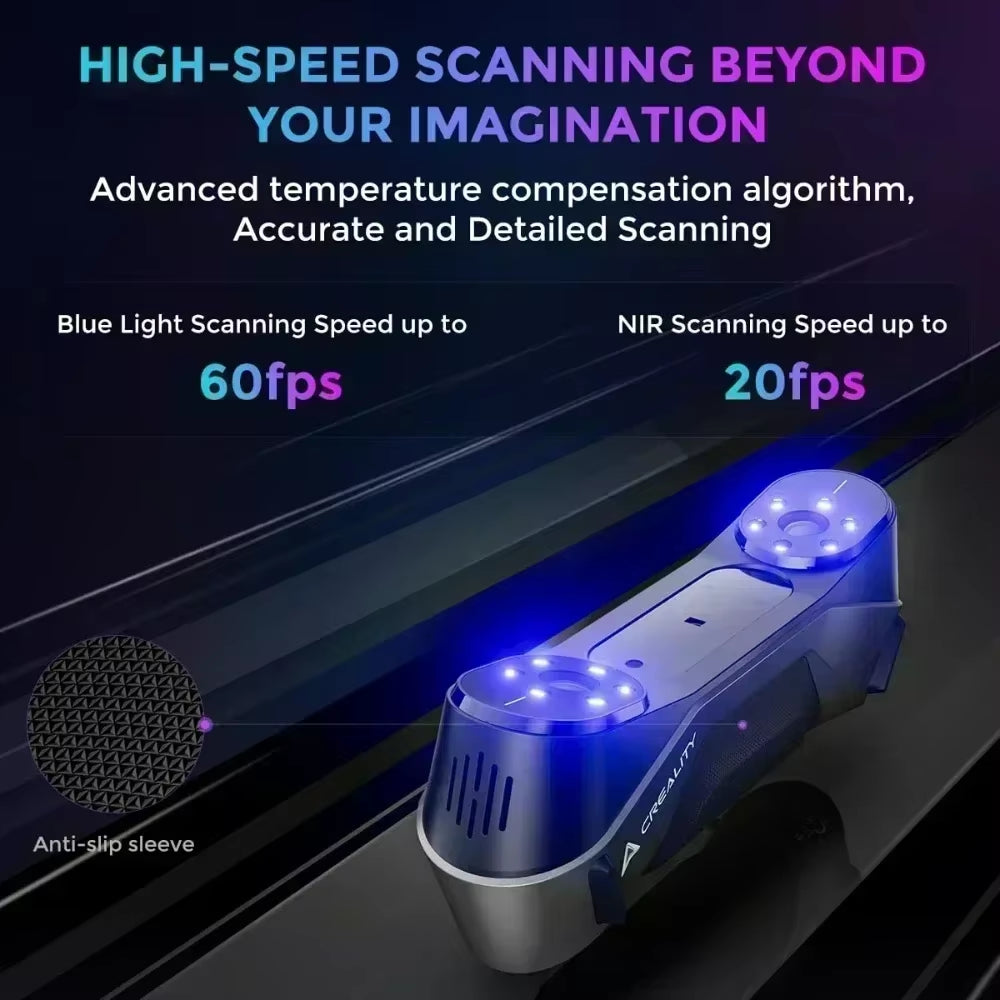

Scanning Speed: Up to 60fps
Min. Scan Volume: 5mm × 5mm × 5mm
Single Capture Range: 270mm×170mm@300mm
Working Distance: 150mm-400mm
Color Mapping: Yes
Alignment Mode: Marker

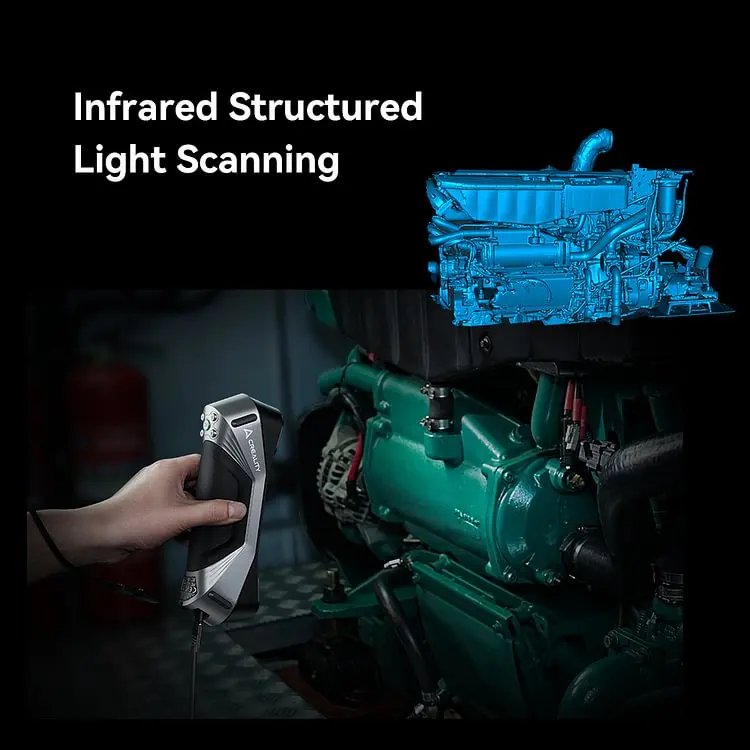

NIR (Infrared Binocular Structured Light) Mode Specifications

Accuracy: Up to 0.1mm
3D Resolution: 0.1-2mm
Scanning Speed: Up to 20fps
Single Capture Range: 930mm×580mm@1000mm
Working Distance: 170mm-1000mm
Color Mapping: Yes
Alignment Mode: Marker / Geometry / Texture

Technical Specifications

3D Imaging Camera Resolution: 1920×1200

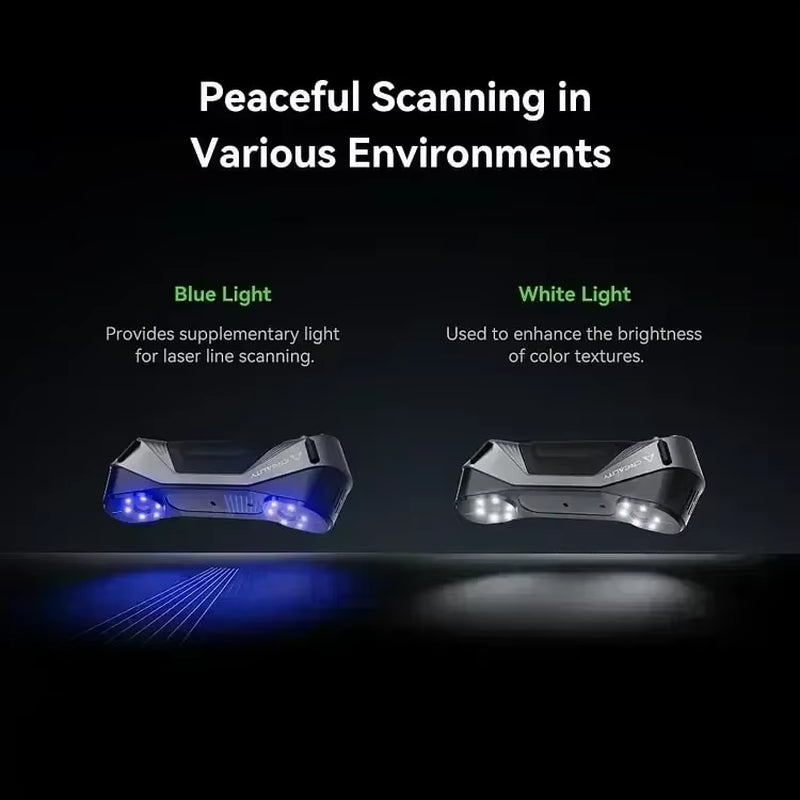

Color: 12 white LEDs
Marker Recognition Enhancement: 12 infrared LEDs
Laser Safety: Class I (eye safe)
Button: Mechanical
IMU: Yes
Output Format: OBJ/STL/PLY
Input Power: 12V 2A
Data Interface: TypeC/USB3.0
Device Dimensions: 215mm×50mm×74mm
Weight: 372g
Calibration Board: High-precision glass calibration board
System Support: Windows/macOS
Operating Temperature: -10°C to 40°C
Operating Humidity: 0-90%RH
Interface Type: USB
Certification: CE
Origin: Mainland China

Features

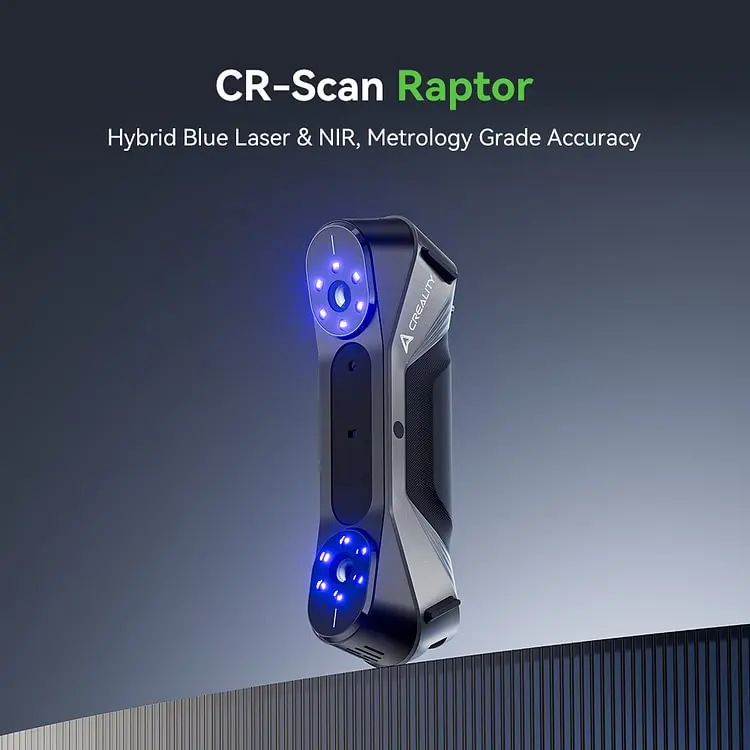

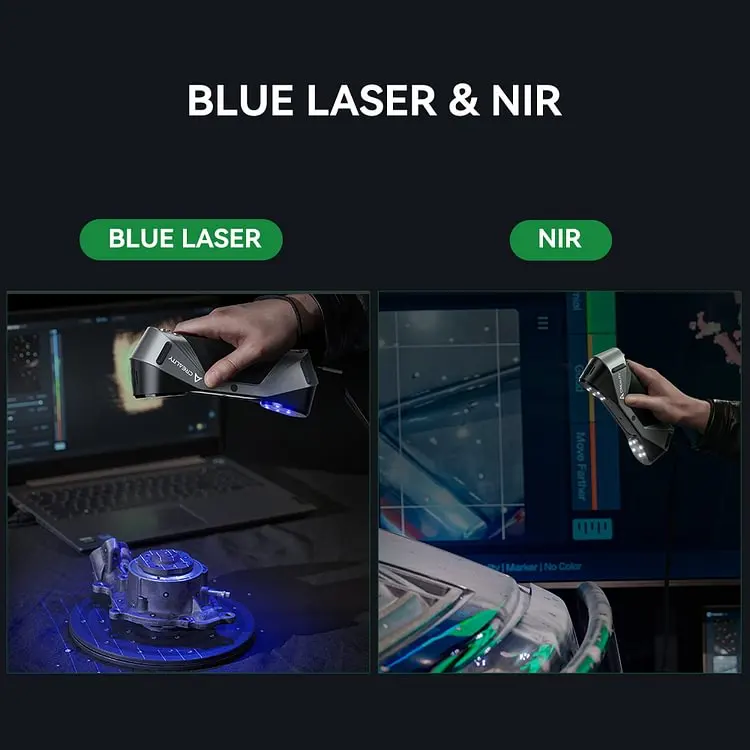

Hybrid Blue Laser & NIR: Dual scanning modes for versatile applications

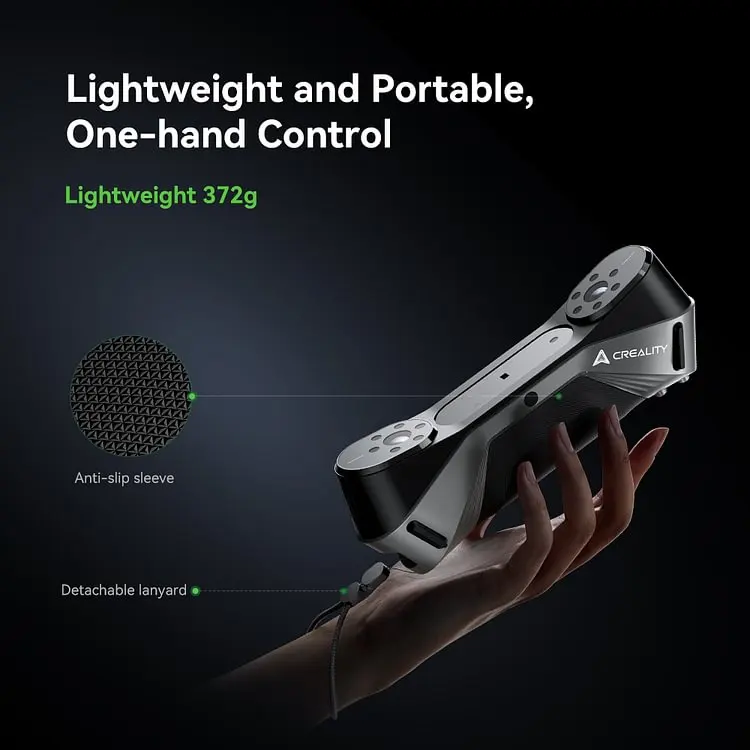

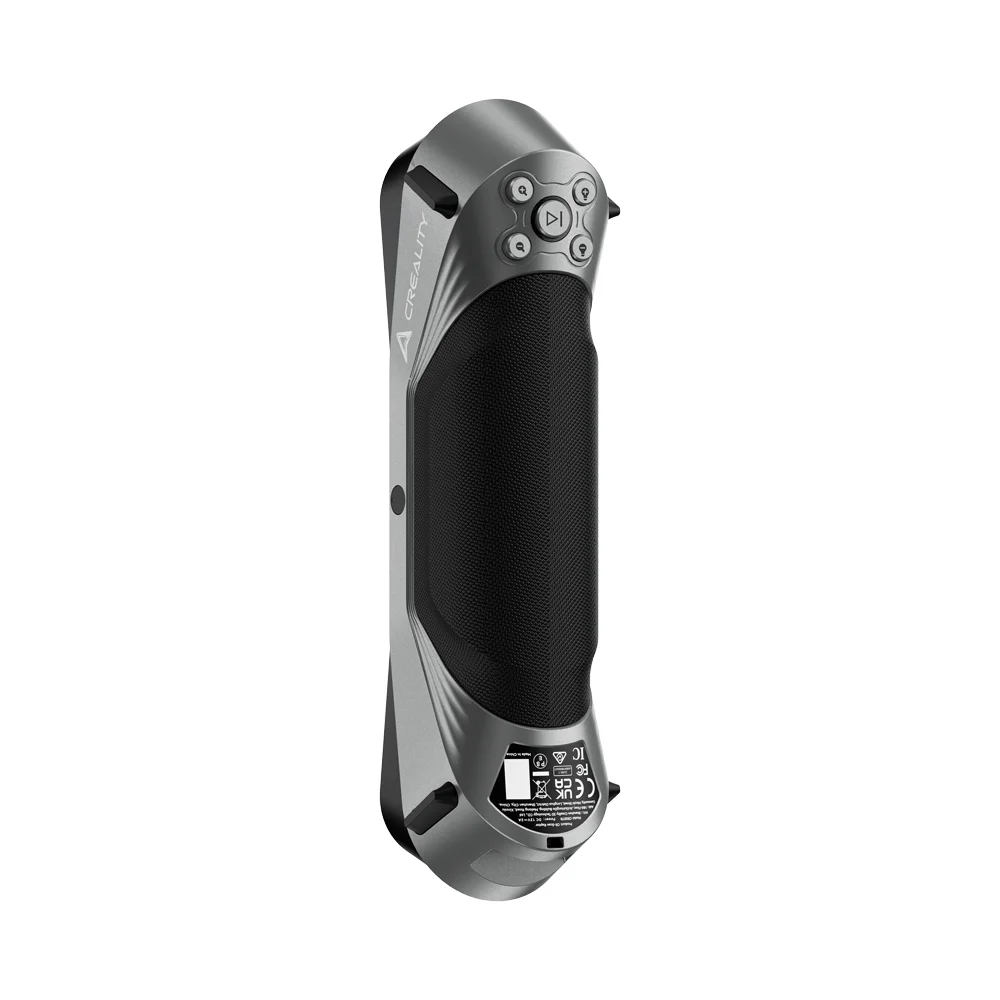

Lightweight and Portable: One-hand control with compact design (215mm×50mm×74mm) weighing only 372g

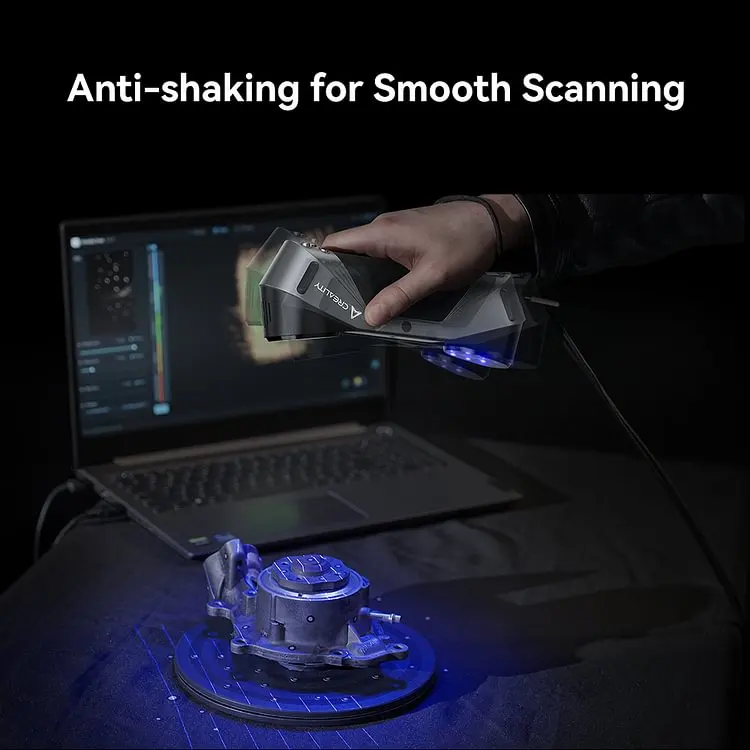

Anti-Shaking Technology: Ensures smooth scanning for accurate results

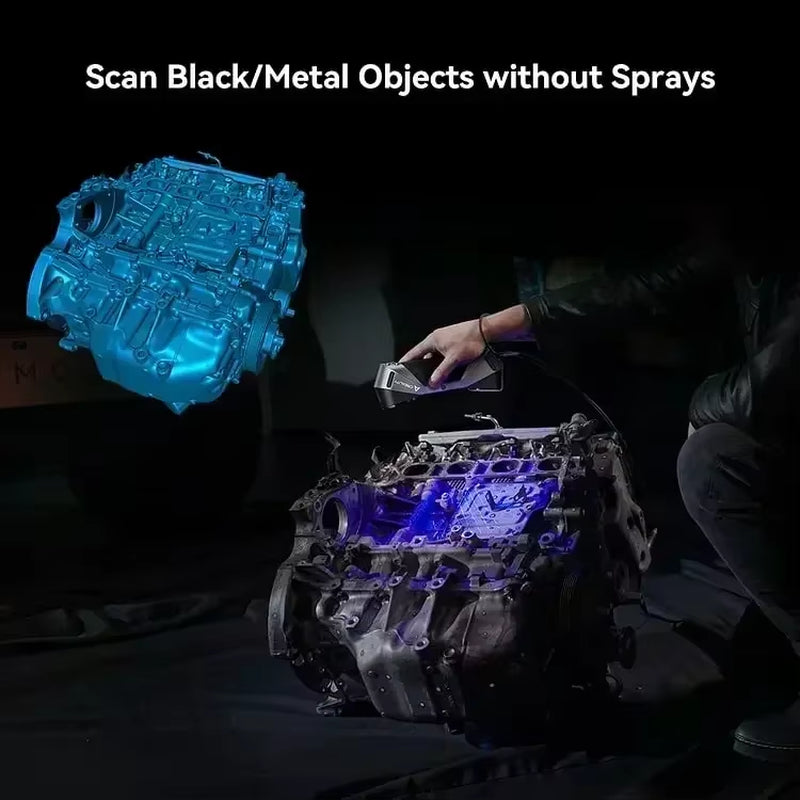

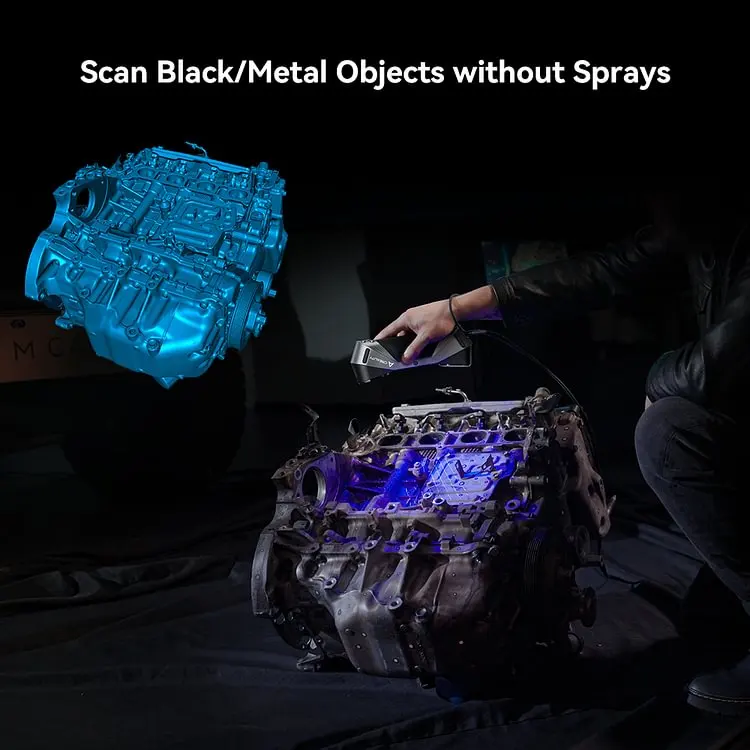

Scan Black/Metal Objects: No sprays required for difficult surfaces

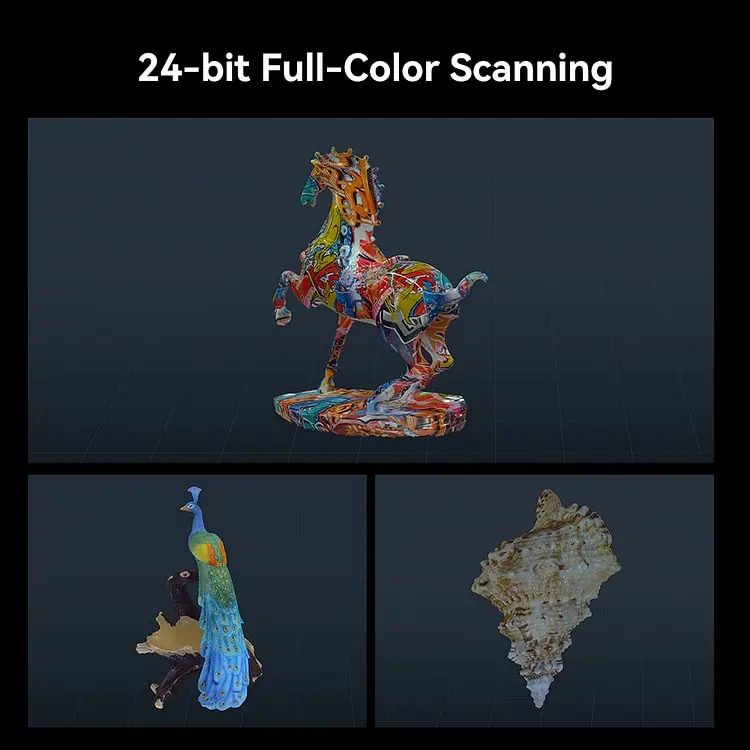

24-Bit Full-Color Scanning: Capture detailed color information
7 Laser Lines: Metrology grade accuracy for professional results
Unique Face & Body Algorithm: Specialized scanning for human subjects

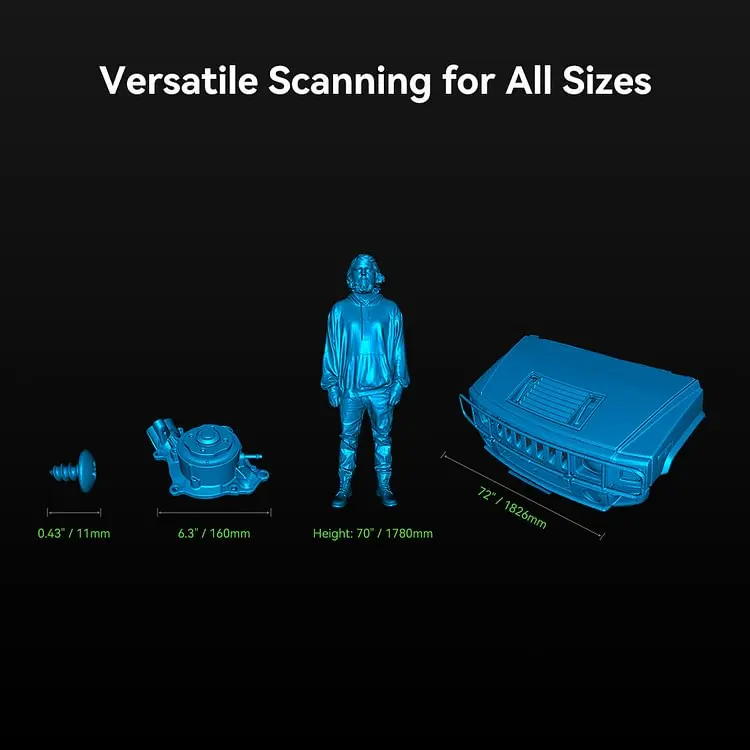

Versatile Scanning: Scan objects between 5-2000mm in size
Wireless Scanning: Supported in conjunction with future wireless scanning accessories

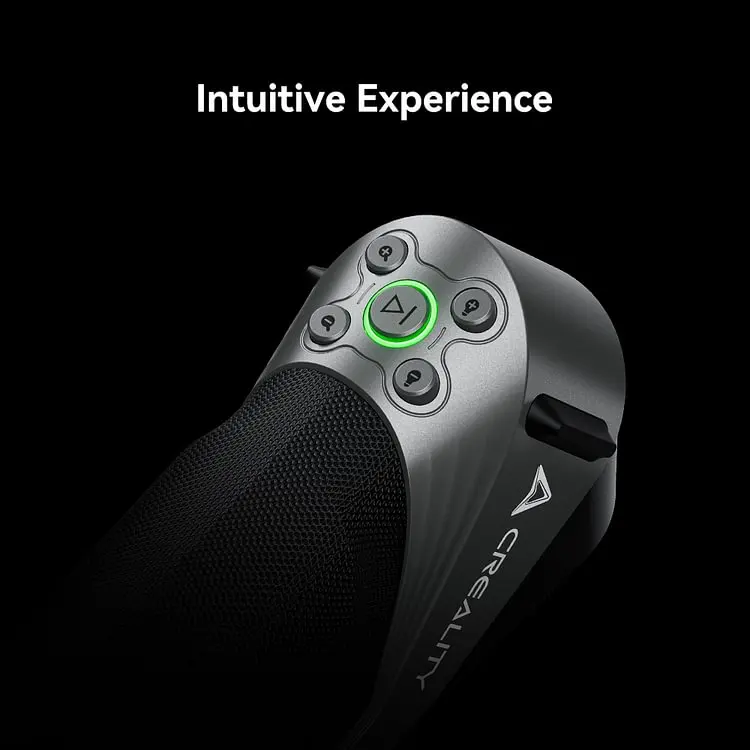

Intuitive Experience: Easy-to-use interface for seamless operation
